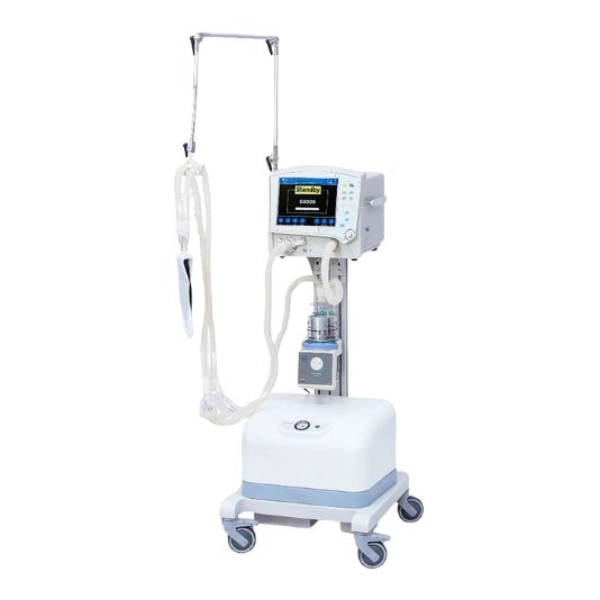

Name: Ventilus 10C A/C Compressor Ventilator
SKU: 1710
Availability: InStock

Model NO.	Ventilus 10C
Patient Type	Adult & Pediatric (Child)
Ventilation Modes	Volume-Controlled Ventilation (VCV) Pressure-Controlled Ventilation (PCV) Synchronized Intermittent Mandatory Ventilation (SIMV+VCV, SIMV+PCV) Pressure-Regulated Volume Control (PRVC, SIMV+PRVC) Continuous Positive Airway Pressure (CPAP/PSV)
Pediatric Mode Specifications	Tidal Volume: 20 – 500 mL Respiratory Rate: 4 – 100 bpm Inspiratory Time: 0.1 – 12 seconds Breath-Holding Time: 0 – 50% Pressure Trigger: -20 cmH₂O to 0 cmH₂O
Adult Mode Specifications	Tidal Volume: 50 – 2500 mL Respiratory Rate: 4 – 100 bpm (SIMV Mode: 1 – 40 bpm) Inspiratory Time: 0.1 – 12 seconds Breath-Holding Time: 0 – 50% Pressure Trigger: -20 cmH₂O to 0 cmH₂O
Monitoring Parameters	Tidal Volume (VT) Peak Airway Pressure (Ppeak) Mean Airway Pressure (Pmean) Plateau Pressure (Pplat) Positive End-Expiratory Pressure (PEEP)
Alarms & Safety Features	Airway Pressure High/Low Alarm Tidal Volume High/Low Alarm Minute Ventilation Alarm Apnea Alarm Power Failure Alarm
Power Supply & Battery Backup	Power Supply: AC 100V – 240V, 50/60Hz Internal Backup Battery: Up to 4 hours of operation External Battery Support: Optional for extended operation
Display & User Interface	High-resolution LCD touchscreen Real-time waveform and loops display Intuitive user interface with quick-access settings Data storage and trend analysis for monitoring patient progress
Physical Specifications	Weight: Approximately 20 – 25 kg Dimensions: Approx. 40 cm (W) × 45 cm (D) × 120 cm (H) Mounting: Mounted on a mobile stand with wheels Gas Source: O₂ and Air (Compressed Air or Central Supply) Noise Level: ≤ 50 dB
