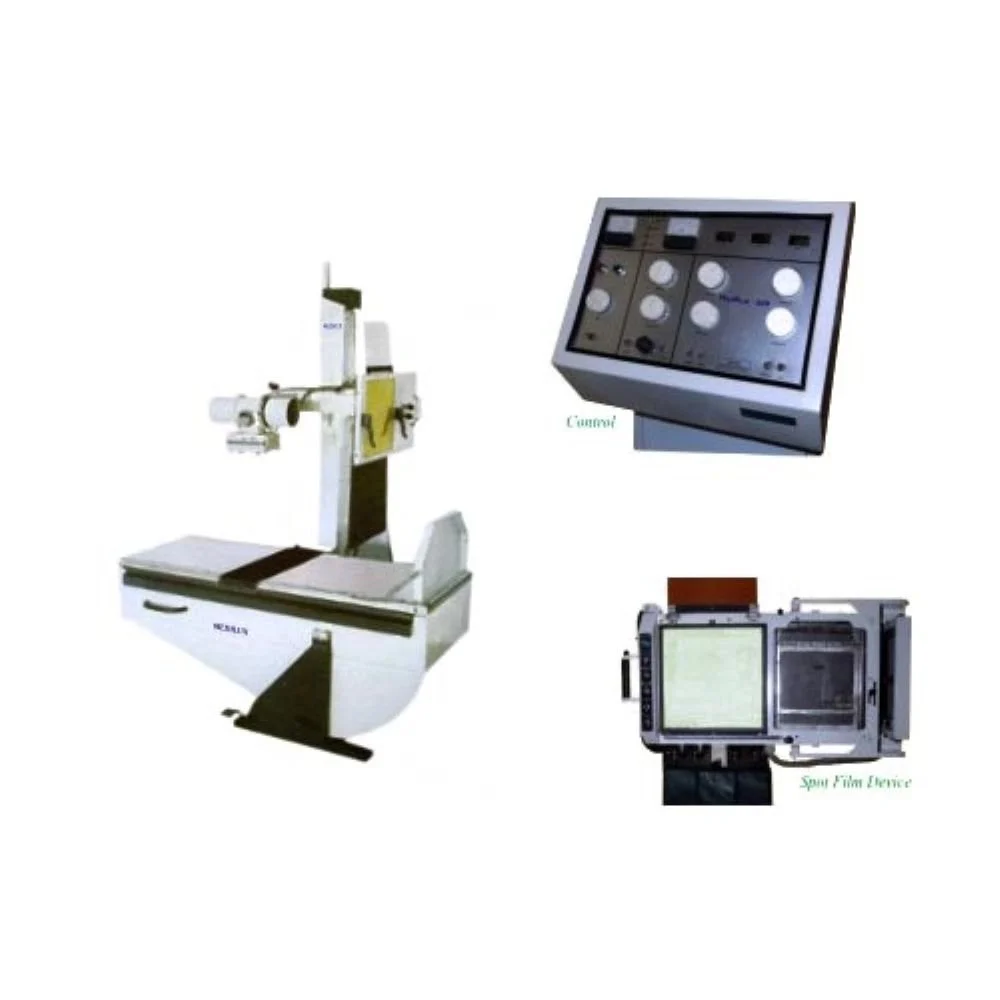

Medilux 300 mA Fixed X-Ray With Manual Tilting Table

We are the leading organization offering our clients with a wide array of Diagnostic X-ray with Manual Tilting Table. Our offered product is manufactured keeping in mind the requirement of all Radiography, Fluoroscopy, Spot Filming and special procedures with manual or motorized tables. In order to ensure the quality and durability of the product, the entire range is tested on various quality parameters before the final delivery at the clients end.

Features:

• High Voltage Silicon Rectifiers for consistent results and low system losses.
• Instantaneous Tube Overload Protection
• Spot filming possible on all mA stations

Specifications:

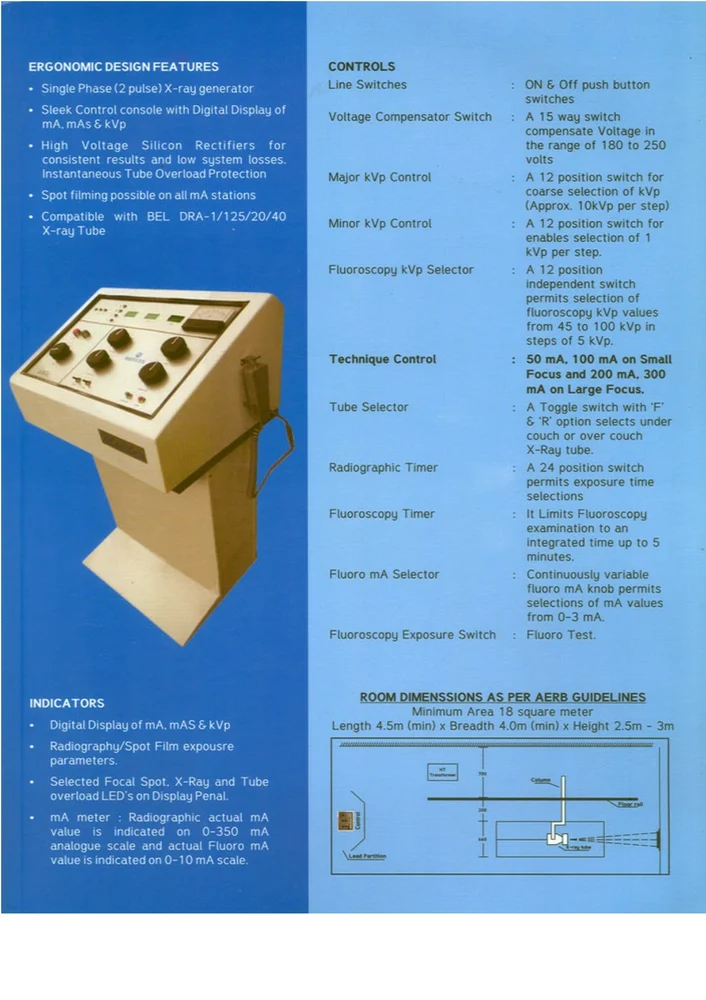

Controls

• Line Switches: On & Off push button switches
• Voltage Compensator Switch: A 15 way switch compensates voltage in the range 180 to 250 volts.
• Major kVp Control: A 12 position switch for coarse selection of kVp. (Approx. 10kVp per step)
• Minor kVp Control: A 12 position switch enables selection of 1kVp per step in the range of 40 to 100kVp.
• Fluoroscopy kVp Selector: A 12 position independent switch permits selection of fluoroscopy kVp values from 45 to 100kVp in steps of 5kVp.
• Technique Control: 50mA, 100mA on Small Focus and 200mA, 300mA on Large Focus.
• Tube Selector: A Toggle switch with ‘F’ & ‘R’ option selects under the couch or over the couch X-Ray tube.
• Radiographies Timer: A 24 position switch permits exposure time selections from 0.02 to 10 seconds.
• Fluoroscopic Timer: It limits fluoroscopic examination for an integrated time up to 5 minutes.
• Fluoro mA Selector: Continuously variable fluoro mA knob permits selections of mA value from 0-3mA.
• Fluoroscopy Exposure Switch: Fluoro Test.

Indicators

• Digital display of mA, mAS & kVp
• Radiography/Spot Film exposure parameters.
• Selected Focal Spot, X-Ray and Tube overload LED’s Display Penal.
• MA meter: Radiographic actual mA value is indicated on 0-350 mA analogue scale and actual fluoro mA value is indicated on 0-10 mA scale.

Power Line Requirement

• Power Demand at rated output-Single Phase, 50 HZ, and 30 KVA. 3 Phase to single phase transformer is recommended Maximum allowable line resistance in 415 lines is 0.5 Ohms.
